Calculated fields

Add your own values to dashboard charts and filters without changing the model.

Calculated fields are in Beta. They only exist inside Intelligence dashboards. Speckle does not save them back into your model. Treat results as something to check carefully — some widgets do not yet handle every calculated field the same way. Prefer them for exploration and drafts until you have validated the numbers for your workflow.

Calculations that run across many elements are easy to misread. Most calculated fields run once per element. Charts and totals that Sum those results can multiply a ratio or an already-totalled value by the element count — so a “percentage” can look like hundreds of thousands, and a total can look impossibly large. Before you trust a number: ask whether each step is one dashboard-level figure (Dashboard constant) or a value stamped on every object; prefer constants (or literals) for shared denominators; and use Things to watch out for and Debugging and validating values when something looks off.

Sometimes the value you need is not already on the model — for example area in a different unit, a simple “yes / no” label, or a custom group such as “small / medium / large”.

Calculated fields let you create that value once, then use it in charts, tables, filters, and colour-by — the same way you pick Category or Level.

In this section:

• Create a calculated field
• Who can use the field
• Choose what the field should do
• Dashboard constants
• Use the field in your dashboard
• Build one field on top of another
• Things to watch out for
• Arithmetic with a per-object denominator
• Ratio filter targeting
• Debugging and validating values

Create a calculated field

Open a dashboard in edit mode. In the left sidebar, open Calculated Fields (calculator icon).

1. Start a new field

   Click New calculated field. Give it a clear name (for example “Area in m²” or “Fire door?”).

2. Set resource scope

   Choose Workspace, Project, or Dashboard. New fields default to Dashboard. Scope defines where the field lives and which dashboards can reuse it. See Who can use the field.

3. Choose what it should do

   Pick a type that matches your goal (maths, grouping, fill blanks, and so on), fill in the options, then save. The dialog includes a short How this works note for each type.

4. Use it on this dashboard

   Dashboard-scoped fields are available on this dashboard as soon as you save. Project- and Workspace-scoped fields appear in Shared library until you click Use on this dashboard.

Outcome: The new value is available to pick in widgets and filters, without republishing the model.

Use a name you will recognise later. If you rename a field, charts and filters that used the old name need to be pointed at the new name.

Who can use the field

When you create a calculated field, Resource scope sets where the field is defined — not which dashboard you happened to open first. New fields default to Dashboard.

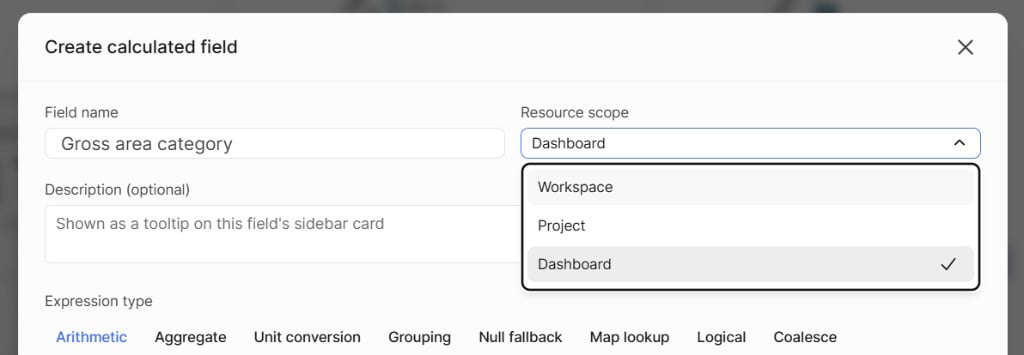

Resource scope in the Create calculated field dialog — Workspace, Project, or Dashboard

Resource scope	Where the field is defined	On this dashboard
Dashboard	Only this dashboard (default)	Ready as soon as you save
Project	Shared across dashboards in the same project	Click Use on this dashboard first
Workspace	Shared across dashboards in the workspace	Click Use on this dashboard first

While calculated fields are in Beta, project- and workspace-scoped fields have no overwrite protection. If two people edit the same shared field, the last save wins — there is no merge, conflict warning, or version history. There is also no syncing between scopes: changing a field’s scope does not keep copies in other scopes up to date, and fields defined at different scopes stay separate.

• Remove from this dashboard — stop using a project- or workspace-scoped field here; it stays in the library.
• Delete from library — remove a project- or workspace-scoped field so other dashboards cannot use it either.
• Delete field — remove a dashboard-scoped field.

Choose what the field should do

You do not need to know formulas or spreadsheet functions. Pick the option that matches what you want the dashboard to show.

I want to…	Choose
Do simple maths or compare two numbers	Arithmetic
Get one total, average, or count for the whole set	Aggregate
Change units (for example feet to metres)	Unit conversion
Put numbers into labelled ranges (small / medium / large)	Grouping → Range groups
Put text values into custom groups	Grouping → Value groups
Fill in a blank when a property is missing	Null fallback
Swap a code or name for a friendlier label from a list	Map lookup
Mark each element as pass or fail with my own labels	Logical
Try several properties and use the first one that has a value	Coalesce

These names match the tabs in the editor.

Arithmetic

Add, subtract, multiply, or divide values from the model — for example combine two areas, or check whether one number is larger than another.

You write a short formula with letters such as a and b, then tell Speckle which model property each letter means. If a value is missing, the result is blank.

Arithmetic works element by element. If your formula divides a fixed number by a per-object property — for example (90000 / Area) * 100 — each element gets its own result. Summing those per-element ratios gives value × element count, not a meaningful percentage.

To get one ratio for the whole dataset:

• Bind the denominator to a Dashboard constant aggregate — constants are not stamped per object, so the ratio stays correct under any aggregation.
• Use the literal value directly: (90000 / 277795) * 100 — every element gets the same constant result, and Average aggregation returns the correct figure.
• Change the widget aggregation to Average when every element genuinely shares the same ratio.

Arithmetic can also bind dashboard constants (scalars) so formulas stay stable when people filter the dashboard. A Dashboard constant Aggregate can source from a per-object calculated field when you need a masked or conditional total as a scalar. See the warning above if your formula divides a fixed number by a per-object property.

Aggregate

Get one figure for the whole data set — for example a total area or an average height — not a different number on every element.

Choose a Population:

Population	What you get	Filters change it?	Typical use
All data	Same total written onto every object	No	Share-of-whole maths with Arithmetic inside one model
Current view	Total for the filtered set	Yes	Totals that follow page filters and slices
Dashboard constant	One dashboard-level number	No	Stable denominators; ratios across models — see Dashboard constants

All data and Current view stamp the result onto each object in that data source. Dashboard constant does not — it stores one scalar for the dashboard (shown with a constant badge in the Calculated Fields list).

For share-of-whole inside one model, see Show each element’s share of the whole.

Unit conversion

Show a number in a different unit — for example feet to metres, or square feet to square metres.

Pick the property, then choose a ready-made length or area conversion, or enter your own multiplier. The unit label is for display only.

Use a Unit conversion field when other widgets, filters, or calculated fields should consume the converted value. If you only need a different area unit or decimal places on a Total or Ratio chart, use widget Settings → Display unit and Rounding instead — see Aggregation and numeric display.

Grouping

Inside Grouping, choose Range groups or Value groups.

Use Range groups when you have a number and want labels such as “under 10”, “10 to 50”, and “over 50”. Use Value groups when you have text (for example type names) and want to roll several values into one label, such as “external walls”. Anything outside your groups gets the fallback label you set.

Null fallback

Use this when a property is sometimes blank and you still want a usable value in charts and filters — for example show “Not set” when fire rating is missing.

Keep the property when it has a value. When it is empty or missing, show the replacement you choose.

Map lookup

Turn a code or short name on the model into a clearer label using a lookup table. Pick the model property, the table, the column to match, and the column to show. Unmatched values use your fallback.

You can import a CSV or Excel file from this dialog (Import new table if tables already exist), or manage tables from Lookup tables in the sidebar.

Logical

Label each element with your own words — for example “Compliant” / “Needs review” — based on rules you set (the same kind of conditions you use in filters).

The element gets the pass label only when every condition is met. Otherwise it gets the fail label. For full rulesets and detailed results, use Validation widgets instead.

Coalesce

Use this when the same idea might live in different properties on different elements — for example one model stores area under one name, another under a different name.

List the properties in order. Speckle uses the first one that has a value.

Dashboard constants

A Dashboard constant is a special kind of Aggregate: one total for the whole dashboard, not a value written onto every object. In the editor, set Population to Dashboard constant. The field shows a constant badge in the Calculated Fields list.

Use it for totals that must stay put while people filter charts, or for X-per-Y figures that mix two models (for example IT load per m² of IT room). Create one constant per side, then divide them in Ratio Value, or in Arithmetic that only uses other constants. Walkthrough: Show an X-per-Y number from two models.

Constants are worked out when your models have loaded and the field is on this dashboard — not each time someone filters. Creating or editing a constant recalculates it automatically.

Use constants in Ratio Value or Total property value. They are not listed next to Category or Level in the shared property library, and they are not for group-by, colour-by, or element filters.

Constants ignore chart and page filters, cannot depend on Current view fields, and add up matching properties across all loaded models. Pick a property that only exists on the model you mean. For totals that follow filters, use Aggregate Current view. For a different value on every element, use a per-element field type instead.

Use the field in your dashboard

Once the field is on this dashboard, treat it like any other property:

• Pick it when you set up a chart or table (what to total, what to group by, and so on)
• Use it in filters
• Use it to colour the model

Dashboard constants are the exception — see Dashboard constants.

Nothing is written back to Revit, Rhino, or the Speckle model. The value only exists while you work in the dashboard.

Build one field on top of another

You can create a second calculated field that uses the first one — for example convert units first, then put the result into ranges.

If two fields depend on each other in a loop, Speckle will not let you save that setup.

An Aggregate field is one shared number for the whole data set. If you group a chart by that field, you usually get a single group — that is expected.

Things to watch out for

Calculated fields are still being exercised against every widget type. A field can look fine in a table and look wrong in another widget. When something seems off, check the combination below before trusting the number.

Ratios and totals can “count twice”

Some widgets (including Ratio Value and Ratio Value by Property) work by adding up a number once per element, then dividing.

An All data or Current view Aggregate already is a total — and that same total is written onto every element. If a ratio widget adds it up per element, the result can be far too large (roughly the real total multiplied by how many elements you have).

Safer patterns today:

• For “share of the whole” inside one model, use Aggregate (All data or Current view) + Arithmetic as in Show each element’s share of the whole — not that Aggregate field inside a Ratio widget.
• For a simple ratio of two per-element model properties, use the Ratio widgets with the original model properties (or a Unit conversion / per-element Arithmetic field).
• For a ratio of two dashboard-level totals (including across models), use Dashboard constant aggregates in the Ratio widget — constants are not stamped per object, so they do not get multiplied by element count. See Dashboard constants.

On Ratio Value or Total property value, use Explain this value to see whether a side is tagged Fixed, Current view, or Constant, and what each stage contributed before the final number.

Arithmetic with a per-object denominator

A formula like (fixedNumber / Area) * 100 looks like a percentage, and Arithmetic will happily evaluate it per element. Each floor element produces something like (90000 / 500) * 100 = 18,000 — one result per element, not one ratio for the set.

When you drop that field into a metric widget set to Sum, the widget adds up every element’s individual ratio. With 27 floor elements the sum is roughly 18,000 × 27 = 486,000 — not 32%.

Use instead:

• A Dashboard constant aggregate for the denominator, then reference it in Arithmetic — constants produce one number for the dashboard and are not stamped per object.
• The literal value if the denominator is known and fixed: (90000 / 277795) * 100 evaluates to the same constant on every element, so Average gives the correct answer.
• Average aggregation (not Sum) when the ratio is truly the same on every element.

If a metric total looks far too large, open Explain this value (? on the widget) and check whether the field stage is tagged Current view rather than Constant. A Current view tag on what you expected to be a fixed denominator means the value is stamped per object and will accumulate with Sum.

Ratio filter targeting

Ratio Value and Ratio Value by Property let you choose which side of the fraction filters affect. In the widget sidebar, Apply filter to (widget filters) and Apply global filter to (page-level filters) each have four states:

State	Effect
Off	That filter is not applied to the ratio
Part only	Filters apply to the Part (numerator) only
Total only	Filters apply to the Total (denominator) only
Both	Filters apply to Part and Total (default)

Use Part only when the numerator should be a filtered subset and the denominator should stay the whole (for example completion-style ratios). Dashboard constants used as operands stay filter-immune; targeting only affects property-based sides.

In Single property mode, Part vs Total targeting is what creates the two populations. Setting both sides on or both sides off collapses that meaning — easy to misread as bad data.

On Ratio Value, Explain this value shows filter chips per side (Applied — narrowing, Ignored, Off, and related states), before/after element counts where narrowing happens, and a note when active dashboard slices target only one side of the ratio. Ratio Value by Property has the same Apply filter to controls but does not yet offer Explain.

Total property value has special handling for Aggregate fields so it does not sum the same total once per element. Do not assume every other widget does the same yet for All data / Current view aggregates.

Charts that group by an Aggregate field

Because every element shares the same All data or Current view Aggregate value, a chart grouped by that field usually shows one bar or category. That is expected. Group by a normal property (or a Grouping / Map lookup field) instead. Dashboard constants are not object properties, so they are not used as group-by fields in the same way.

Cross-model totals need dashboard constants

On a dashboard with more than one model (more than one Model Viewer / data source), All data and Current view aggregates are calculated inside each model separately. You cannot take a stamped total from model A and use it as a per-object input on model B.

To combine totals across models — for example rack IT load from one model and IT room area from another — create Dashboard constant fields for each side and divide them in Ratio Value or in Arithmetic that only references those constants. See Dashboard constants.

Renames break existing widgets

Charts, filters, and colour-by remember the field name. Rename the field, and those widgets need to be pointed at the new name again.

Not for writing back to the model

Calculated fields are analysis-only. They do not appear as editable parameters in Parameter Updater.

Check the numbers

Until the Beta settles, spot-check important dashboards: compare a calculated total to Total property value on the same property, or to a known figure from the model. If a ratio or total looks impossibly large or tiny, look for an Aggregate field used where a per-element value was expected. For a guided walkthrough of the built-in checks, see Debugging and validating values.

Debugging and validating values

When a calculated number looks wrong, work from the quickest check to the most detailed. Only some widgets expose a full explanation today.

Live preview in the calculated field editor

While you create or edit a field (left sidebar → Calculated Fields → open the field), most expression types show a live preview against loaded model data:

• Input values and the resulting value for one sample object
• A dice control to pick another random sample when more than one object qualifies
• A short reason when preview cannot run (for example missing property mapping, no loaded data, or a dashboard constant that has not been computed yet)

For Range groups, the editor also shows a Distribution chart of the source property across loaded objects, so you can see whether your bands cover the values you expect.

The editor also blocks save when required options are missing or invalid (highlighted controls). Fix those before trusting any widget that uses the field.

Explain this value

On Ratio Value and Total property value, in edit mode, open the ? (Explain this value) action on the widget card. The dialog shows how the live number was produced from the widget’s current filters and dashboard slices — not an unfiltered dashboard-wide sample.

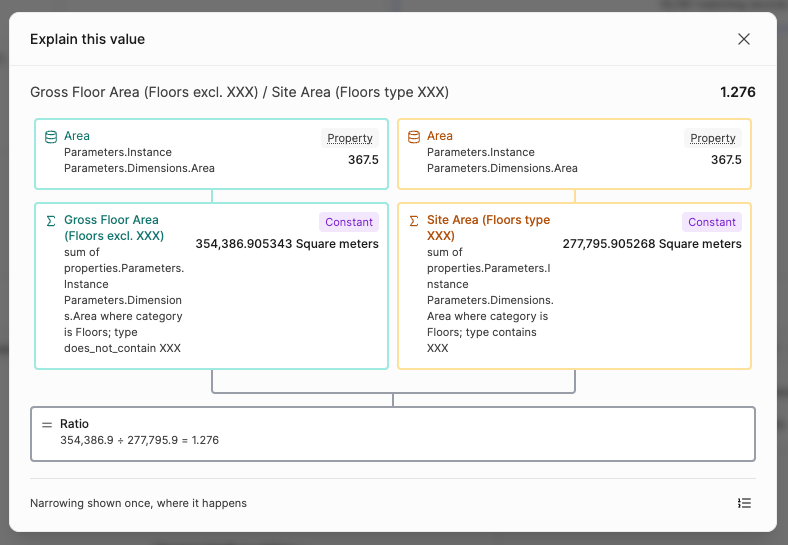

Explain this value on a Ratio Value widget — Part and Total as coloured branches, each with property source and Constant aggregate, then the combined ratio.

You get:

• A banner when dashboard slices are active (titles and selected values)
• A stage flow for sources, calculated fields, aggregates, filters/slices, and the final combine step
• Tags for value sources (Fixed, Current view, Constant) and for how filters apply on each side
• Narrowing counts once where filters actually reduce the element set (total → matched)
• Status notes when something is empty, null-only, divide-by-zero, missing a field reference, or using an inferred scope (self-division that silently drops elements without a declared filter)
• An insight note when active slices affect only one side of a ratio
• Optional plain text summary (list icon) you can copy

Click a clickable stage to jump to the calculated-field editor or the widget filter UI for that step.

Ratio Value by Property does not have this action yet. Use filter targeting in the sidebar and the live preview on the field instead.

Filters, slices, and scenarios

Wrong numbers are often filter state, not bad maths:

• On ratio widgets, check Apply filter to and Apply global filter to (see Ratio filter targeting).
• On Total property value, Apply global filters turns page-level slices on or off for that widget.
• Active slices appear in the filter bar. Scenarios restore named filter and colour-by snapshots; they do not change calculated-field definitions, but they do change which elements feed widgets that respect those filters.

If a Ratio Value settles on no usable result, the card can show Invalid (for example divide by zero) — open Explain to see which stage failed.

FAQ

Something looks wrong — how do I debug it?

Start in the calculated field editor: check the live sample preview (and the Distribution chart for Range groups). Then check filter targeting, the filter bar, and any active scenario. On Ratio Value or Total property value, open Explain this value (?) for the stage flow, narrowing counts, and filter chips. Spot-check against Total property value or a known model figure. Full walkthrough: Debugging and validating values.

Will this change my model in Speckle or in my design tool?

No. Calculated fields only exist in the dashboard. They are not published back to the model.

I created a field but I cannot find it in my chart

Check that it appears under On this dashboard. If it is only in Shared library, click Use on this dashboard. Then open the chart settings and pick the field by the name you gave it.

My chart broke after I renamed a field

Charts and filters remember the old name. Open the widget settings and choose the field again under its new name.

Can I push these values back into Revit or Rhino?

Not with calculated fields. They are for analysis in the dashboard. To edit real model parameters and send changes back, see Parameter Updater.

My Ratio widget number looks impossibly large

Check whether a numerator or denominator is an All data or Current view Aggregate. Ratio widgets often add values once per element, which can multiply an already-totalled field. Use original model properties, build the share with Aggregate + Arithmetic, or use Dashboard constant aggregates when both sides are dashboard-level totals — see Things to watch out for and Dashboard constants.

My arithmetic percentage looks far too large

The most common cause is a formula with a per-object denominator summed across many elements. For example (90000 / Area) * 100 with aggregation Sum adds up one ratio per element — with 27 elements each returning ~18,000, the total is ~486,000.

Try one of these:

• Switch aggregation to Average if every element should carry the same ratio.
• Replace the property binding with a Dashboard constant aggregate so the denominator is one shared number, not a per-element value.
• Use the literal denominator directly if it is a known fixed number: (90000 / 277795) * 100 gives a constant result that aggregates correctly.

Open Explain this value (? on the widget) and look at the field stage tag: Current view means the value is re-stamped per object; Constant means it is a single dashboard-level number. See Arithmetic with a per-object denominator.

Can I use one model's total with another model's total?

Yes, with Dashboard constants. Create a constant for each model’s total, then divide them in Ratio Value or in Arithmetic that only references those constants. Ordinary All data / Current view aggregates still stay inside each model’s objects — see Dashboard constants.

Why does my dashboard constant ignore filters?

That is intentional. Dashboard constants are filter-immune so denominators stay fixed while people explore. Use Aggregate with Current view when the total should follow filters.

Isn't Logical the same as Property Checker?

Kind of yes, and kind of no. Both let you set conditions on model properties. Use Logical when you want a label you can put in a table, chart, filter, or another calculated field — and when your two outcomes are not necessarily “Pass” and “Fail” (for example “Compliant” / “Needs review”).

Use Property Checker (see Validation widgets) when you want a dedicated validation view of the result. Logical does not explain why an element got its label or break down how that outcome was reached; Property Checker is built for that kind of review.

See also

• Filters — Focus the dashboard on part of the model
• Lookup tables — Import lists for Map lookup and validation
• Common workflows — Share of the whole with Aggregate and Arithmetic
• Common workflows — An X-per-Y number from two models
• Common workflows — Codes to clear labels with lookup tables and Map lookup
• Intelligence Dashboards — Overview and widgets
